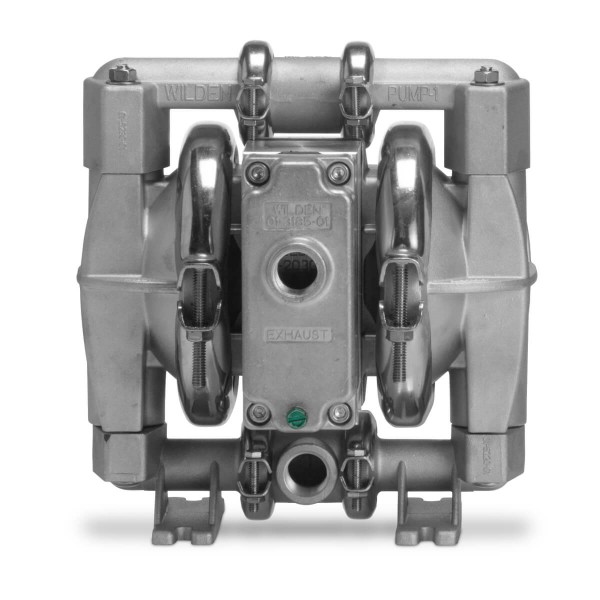

    P1 1/2" Diaphragm Pump

    페이지 정보

    profile_image
    작성자 PNSENG
    댓글 댓글 0건   조회Hit 375회   작성일Date 21-03-29 14:09

    본문

    Performance and Specifications

    13 mm (1/2") Pro-Flo® SHIFT Series Clamped Metal PumpPS1

    AIR INLET
    • 1/2" FNPT
    LIQUID INLET
    • 13 mm (1/2")
    LIQUID DISCHARGE
    • 13 mm (1/2")
    CONNECTION TYPE
    • NPT/BSPT (Threaded)
    MAX SUCTION LIFT CAPABILITY
    • Rubber – 5.9 m (19.3') Dry, 9.8 m (32.3') Wet
    • TPE – 5.7 m (18.7') Dry, 8.3 m (27.2') Wet
    • PTFE – 4.3 m (14.2') Dry, 9.7 m (31.7') Wet
    MAX FLOW RATE
    • Rubber – 60.2 lpm (15.9 gpm)
    • TPE – 60.2 lpm (15.9 gpm)
    • PTFE – 59.8 lpm (15.8 gpm)
    MAX PRESSURE
    • 8.6 bar (125 psi)
    MAX DIAMETER SOLIDS
    •  1.6 mm (1/16")
    DISPLACEMENT PER STROKE *
    • Rubber – 0.10 L (0.026 gal)
    • TPE – 0.10 L (0.026 gal)
    • PTFE – 0.10 L (0.026 gal)
    * 1 cycle = 2 strokes


    Features and Benefits

    Featuring the original air-operated double-diaphragm pump design by Jim Wilden, clamped metal pumps offer a simple, rugged design for general industrial applications. Designed with ease of maintenance in mind, clamped pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool. Proven by the test of time, hundreds of thousands of Jim Wilden's clamped pumps have pumped billions of gallons of fluid on an annual basis.

    • NPT or BSPT threaded inlet/discharge liquid connections for quick disconnect/connect
    • Featuring the energy-efficient Pro-Flo® SHIFT ADS
    • Greater flow - more gallons pumped per SCFM
    • Reduced air consumption and kilowatt usage
    • Decades of proven performance
    • Clamped connections for faster maintenance
    • Low cost
    • Simple installation
    • Ease of operation and maintenance



    Downloads

    EOMs

    Model: PS1 | Code: WIL-10470-E-04

    Flyers

    WIL-19190-F-03


    Performance and Specifications

    Dimensions

    Dim-PS1-13mm-1.5in-PF-SSCMP

    Note: Dimensions vary by material and connection. For additional information, please refer to the PS1 Metal Manual.

    Flow Curve – PTE-Fitted

    Flo-PS1-13mm-1.5in-PF-SSCMP

    Note: Additional performance curves can be found in the PS1 Metal Manual.

    AIR INLET
    • 1/2" FNPT
    LIQUID INLET
    • 13 mm (1/2")
    LIQUID DISCHARGE
    • 13 mm (1/2")
    CONNECTION TYPE
    • NPT/BSPT (Threaded)
    MAX FLOW RATE
    • Rubber – 60.2 lpm (15.9 gpm)
    • TPE – 60.2 lpm (15.9 gpm)
    • PTFE – 59.8 lpm (15.8 gpm)
    MAX PRESSURE
    • 8.6 bar (125 psi)
    MAX DIAMETER SOLIDS
    • 1.6 mm (1/16")
    MAX SUCTION LIFT CAPABILITY
    • Rubber – 5.9 m (19.3') Dry, 9.8 m (32.3') Wet
    • TPE – 5.7 m (18.7') Dry, 8.3 m (27.2') Wet
    • PTFE – 4.3 m (14.2') Dry, 9.7 m (31.7') Wet
    DISPLACEMENT PER STROKE *
    • Rubber – 0.10 L (0.027 gal)
    • TPE – 0.10 L (0.026 gal)
    • PTFE – 0.10 L (0.026 gal)
    * 1 cycle = 2 strokes

    Wetted Housings

    MATERIALSHIP WEIGHT
    Aluminum6 kg (13 lb)
    Stainless Steel9 kg (20 lb)
    Alloy C9.5 kg (21 lb)

    Non-Wetted Housings

    DESCRIPTIONMATERIAL
    Center BlockAluminum
    Air ValveAluminum





    Elastomer Options

    MATERIALTEMPERATURE LIMITS
    Buna-N-12°C to 82°C (10°F to 180°F)
    EPDM-51°C to 138°C (-60°F to 280°F)
    FKM-40°C to 177°C (-40°F to 350°F)
    Geolast®-40°C to 82°C (-40°F to 180°F)
    Neoprene-18°C to 93°C (0°F to 200°F)
    PTFE*4°C to 104°C (40°F to 220°F)
    Polyurethane-12°C to 66°C (10°F to 150°F)
    Saniflex™-29°C to 104°C (-20°F to 220°F)
    Wil-Flex™-40°C to 107°C (-40°F to 225°F)

    * 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
